osm-walkmap

A real OpenStreetMap map, redrawn in your own style, with the walking routes actually computed.

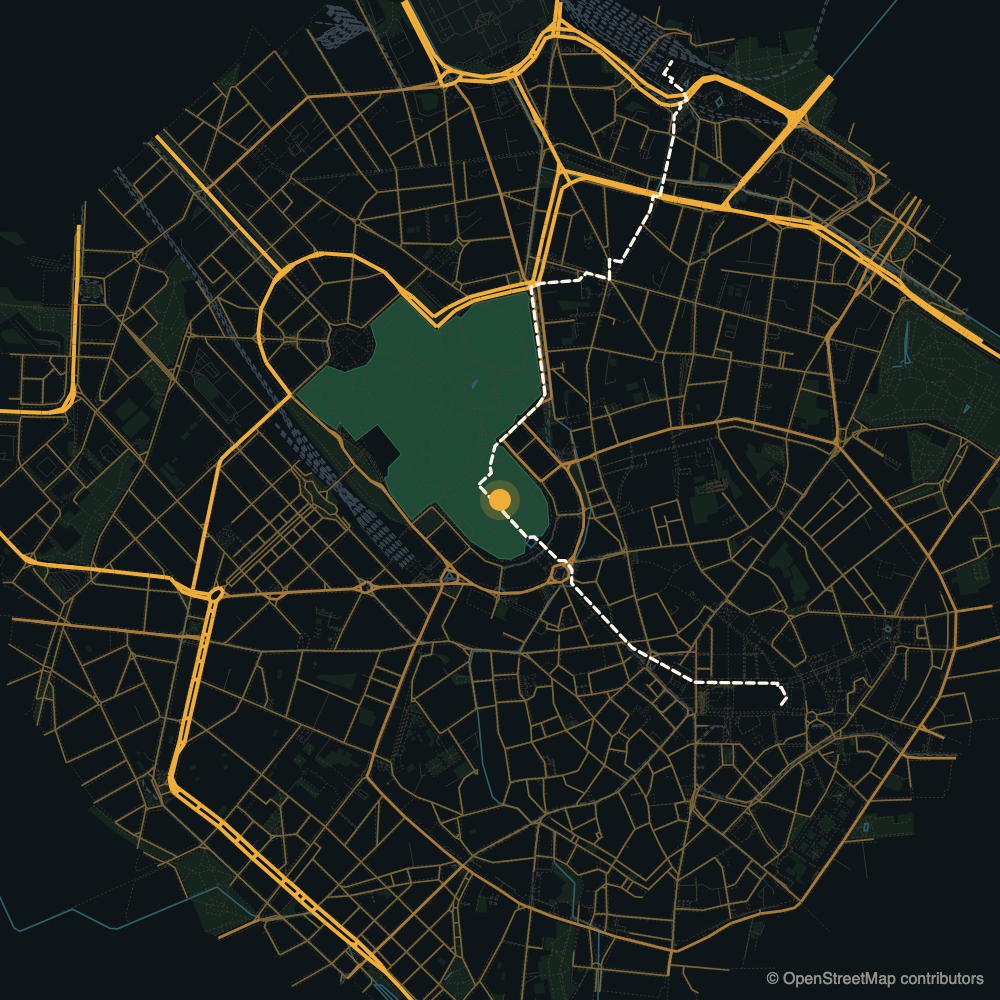

Sforza Castle, Milan: Parco Sempione highlighted, the walk to the Duomo and the ride to Porta Garibaldi drawn

▶ Watch the animated demo — Milan, 9:16, the routes drawing themselves. One HTML file, no libraries.

You give it a point and a few destinations. It gives you a layered SVG you can style with CSS and animate with stroke-dashoffset, plus a JSON with the distance and the walking minutes to each destination, measured on the real pedestrian network.

Standard library only. No pip install, no geospatial stack, no API key. One file, ~250 lines.

export OSM_CONTACT="you@example.com"          # the Overpass usage policy asks clients to identify themselves
python3 osm_walkmap.py --lat 45.4706 --lon 9.1795 --radius 1800 --tol 8 --out example \
  --target "Duomo=45.4641,9.1919" \
  --target "Porta Garibaldi station=45.4848,9.1876:bike" \
  --target-boundary "Parco Sempione=leisure=park" --area-full "Parco Sempione"

INFO walk graph: 42400 nodes, house snapped to node at 22 m
INFO bike graph: 42546 nodes, house snapped to node at 22 m
INFO map.svg 560 KB, layers {'green': 767, 'green-hero': 1, 'road-major': 430, 'path': 10064, ...}
INFO Duomo                   1483 m  20 min by walk
INFO Porta Garibaldi station 2213 m  11 min by bike
INFO Parco Sempione           155 m   3 min by walk

Why this exists

It was written to open a property video: a still frame of the house that freezes, shrinks into a pin, and lands on the map of the town while three walking routes draw themselves, one per destination, with the minutes next to them. Every other tool either draws a beautiful map you cannot animate piece by piece, or computes routes without drawing anything, or pulls in half of the geospatial ecosystem to do both.

The point is honesty as much as looks. If a graphic tells a buyer “the school is six minutes away”, that number should come from the street network, not from a designer’s guess. This computes it, and refuses to invent one when the pedestrian graph cannot reach the destination.

What you get

map.svg with a viewBox in metres, origin on your point, x east and y south. One group per feature class, so you can style and reveal them independently:

field · green · green-hero · water · rail · road-service · path · road-minor · road-mid · road-major
routes → <path id="route-0">, <path id="route-1">, …

Because the coordinate system is metres, placing a label is arithmetic, not guesswork: a destination at (172, 98) in map.json is 172 m east and 98 m south of your point.

map.json:

{
  "house": {"lat": 45.61341, "lon": 9.267219, "snap_m": 2},
  "routes": [{"label": "Primary school", "mode": "walk", "reachable": true, "metres": 442, "minutes": 6,
              "point": [172.1, 97.9], "path_points": 6}],
  "attribution": "© OpenStreetMap contributors (ODbL)"
}

The example/ folder holds the output of the command above, run from the Sforza Castle in Milan. A dense city centre is the worst case for size: ten thousand footpaths make a 560 KB SVG even at --tol 8. A town is closer to 100 KB.

demo.html (with --demo): the animated preview, see below.

overpass.json is the cached raw response. Re-running is free and does not hit the API again; delete it to refresh.

Animating it

The routes are plain paths, so the classic line-drawing trick works:

const path = document.querySelector("#route-0");
const len = path.getTotalLength();
path.style.strokeDasharray = len;
path.style.strokeDashoffset = len;
gsap.to(path, {strokeDashoffset: 0, duration: 1.2, ease: "power1.inOut"});

One warning learned the hard way: if your stylesheet sets stroke-dasharray with !important, it beats the inline value and every route appears fully drawn from frame zero.

--demo

Add --demo (and optionally --title "Town") and you also get demo.html: a single self-contained page, no libraries, that does the whole opening for you. The camera settles on the pin, the routes draw themselves shortest first, each label appears when its route arrives, the title fades in at the end. Open it in any browser; there is a replay button. It is a preview and a reference implementation, not a video renderer: for the real thing take the same SVG into your motion tool.

The example is live at ioluca.github.io/osm-walkmap/example/demo.html, or open example/demo.html locally.

Options

Option
--lat --lon the point everything is measured from. Required
--radius metres of map to download around it (default 1800)
--out output directory
--target "Label=lat,lon" a destination. Repeatable. Append :bike to route it by bicycle
--target-boundary "Label=key=value" a destination that is an area: the route ends at the nearest reachable point of its boundary, not its centroid. For a large park that is the difference between an honest number and a misleading one. If an area in the download is named exactly like the label, that one is used; otherwise any area with that tag counts, so name the label after the place you mean
--area-full "Exact name" fetch that area whole even if it extends past the radius, so a big park is not drawn as clipped shards. It also gets its own green-hero layer
--tol simplification tolerance in metres (default 4). This is what keeps the SVG around 100 KB instead of 2 MB
--speed "walk=4.5,bike=15" speeds in km/h, if the defaults do not fit your audience
--demo, --title "Town" also write demo.html, the animated preview

Destinations are snapped to the nearest reachable node of the graph, not simply the nearest one: a clipped fragment at the edge of the download would otherwise make a perfectly walkable target look unreachable. If that snap is more than 150 m the tool warns you, because it usually means the target sits outside --radius.

Two modes, each with its own graph. Walk (4.5 km/h) uses everything but motorways and ways tagged foot=no. Bike (15 km/h) drops steps and footways unless they carry bicycle=yes, so a cycling route is not just the walking route at a higher speed: it can be longer and still faster. Minutes are rounded up.

What it deliberately does not do

Prior art

Every individual piece here is well covered by mature projects. The combination is the narrow gap this fills.

Project For Dependencies Routes and times Layered SVG to animate
OSMnx street network analysis and research geopandas, networkx, shapely, matplotlib yes, far more thorough than this export, not per-feature groups
prettymaps beautiful poster maps osmnx, matplotlib, shapely, vsketch no not addressable per element
Map Machine full OSM renderer with an icon set Cairo, GEOS no yes, but aimed at map display
plotting-maps pen plotter output vpype no lines only
pychrone, isolines isochrone polygons osmnx stack times, as polygons no
osm-router stdlib Dijkstra on OSM, as a demo none yes no
osm-walkmap one map for one graphic or video none yes, one path per route yes, groups and metre coordinates

If you need serious network analysis, use OSMnx. If you want a poster on your wall, use prettymaps. Use this when the map has to become a moving graphic and the minutes on screen have to be true.

Licence and attribution

Code: MIT, © 2026 Luca Cazzaniga. Written with AI assistance (Claude). The MIT licence covers this source code only, not the data you download with it, and not what you produce from that data: see NOTICE.

Map data: © OpenStreetMap contributors, ODbL. This is not optional and it does not stop at this repository: anything you publish that is derived from this output has to carry the attribution visibly. In a video, a line in a corner is enough. See the OSM copyright page.

Please also respect the Overpass and Nominatim usage policies: set OSM_CONTACT, and let the cache do its job instead of re-querying in a loop.
